NICGIGA CPE900 Wireless Bridge: A Plug-and-Play Solution for Long-Distance WiFi Transmission
$119.99
Price: $119.99
(as of May 22,2023 15:48:11 UTC – Details)
Do you need to bridge a long distance with WiFi but don’t want to go through complicated setup procedures? Meet the NICGIGA CPE900 Wireless Bridge, a point-to-point solution for long-distance WiFi transmission that comes with built-in 14dBi antenna and supports up to 900Mbps transmission between bridges. Using the 5.8 GHz frequency band, you can avoid the common 2.4 GHz frequency band used by household and handheld devices, reducing interference and achieving high-speed transmission.
Setting up the NICGIGA CPE900 Wireless Bridge is as easy as plug-and-play. Point-to-point pairing can be performed by simply dialing, without entering the graphical user interface, eliminating the need for complicated setup procedures. It also supports two power supply modes: power adapter and Passive 24V PoE, which can power up to 70 meters.
The NICGIGA CPE900 Wireless Bridge is a professional outdoor design that can withstand harsh environments. It is waterproof, heat-resistant, cold-resistant, dustproof, and lightning-proof, making it safe and reliable. Plus, it comes with a one-year warranty and lifetime technical support.
Product Parameter
| Model | CPE-S900 |
| Main Chipset | MTK7620A+7621E+IP1001M 900Mbps |
| Wireless Technology | 5G:900M 802.11a/n/ac MIMO technology |
| Power Consumption | 24V 0.5A Passive PoE DC 12V 1A,<10W |
| Antenna | Built-in high gain 14dBi directional panel antenna (horizontal wave half-angle 60°, vertical wave half-angle 60°) |
| Frequency Range | ISM band: 4.900GHz ~ 5.850GHz |
| Environment | Operating Temperature: -30~55 ℃; Storage Temperature: -40~70 ℃; Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~95% non-condensing |
| Flash | 8MB |
| Memory | 64MByte DDR2 |

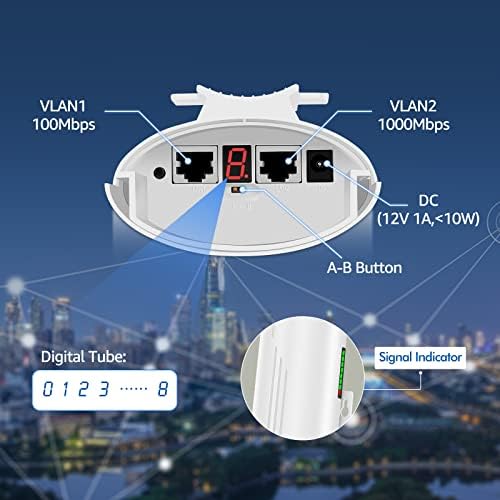

| Interface | WAN:1*10/100/1000 Mbps Adaptive RJ45 Network Interface LAN:1*10/100Mbps Adaptive RJ45 Network Interface |
| Channel Distribution | 5G：36、40、44、48、52、56、60、64、149、153、157、161 |
| EVM | 802.11n: ≤ -28 dB 802.11a: ≤ -25 dB |
| PPM | <±20ppm |
| Network | Bridge: Static IP/Dynamic Acquisition Gateway: Static IP/Dynamic Acquisition/PPPoE |
Frequently Asked Questions
What is the power transmission distance between the PoE adapter and the bridge?
PoE-powered distance support can reach up to 50-70 meters.
Does the wireless bridge come with AP mode?
Yes, the wireless bridge supports AP mode.
Can it be 1 master Wireless Bridge paired with multiple slave wireless bridges?
Yes, it can pair up to 8 slave wireless bridges with one master wireless bridge.
How does the receiving end connect to the router?
The LAN port on the receiving end of the wireless bridge is connected to the router. After that, set up the WiFi of the router.
How many Mbps network rate can the CPE900 wireless bridge provide when connected to the router?
When the
